The problem
Conveyor belt mistracking is the number one problem on bulk material handling systems, causing spillage, belt edge damage, structural damage, increased power consumption, extra labour and costly downtime.
What CRS supplies
CRS belt alignment products activate automatically and provide immediate, continuous adjustment to guide the belt back to the centre position.
The range
Return trackers6 variants

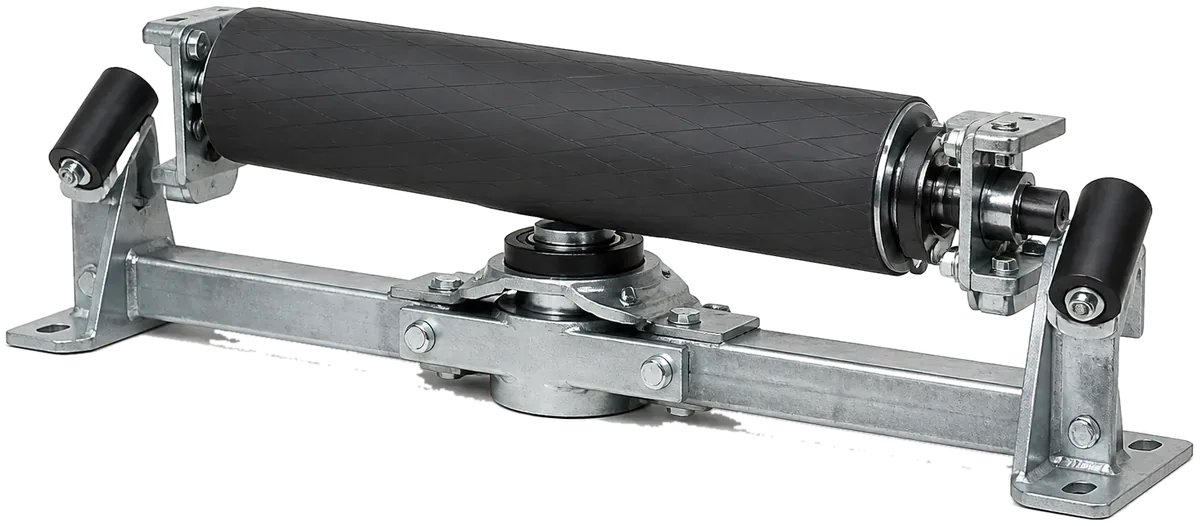

Single-roll tracker for the return side of the belt.

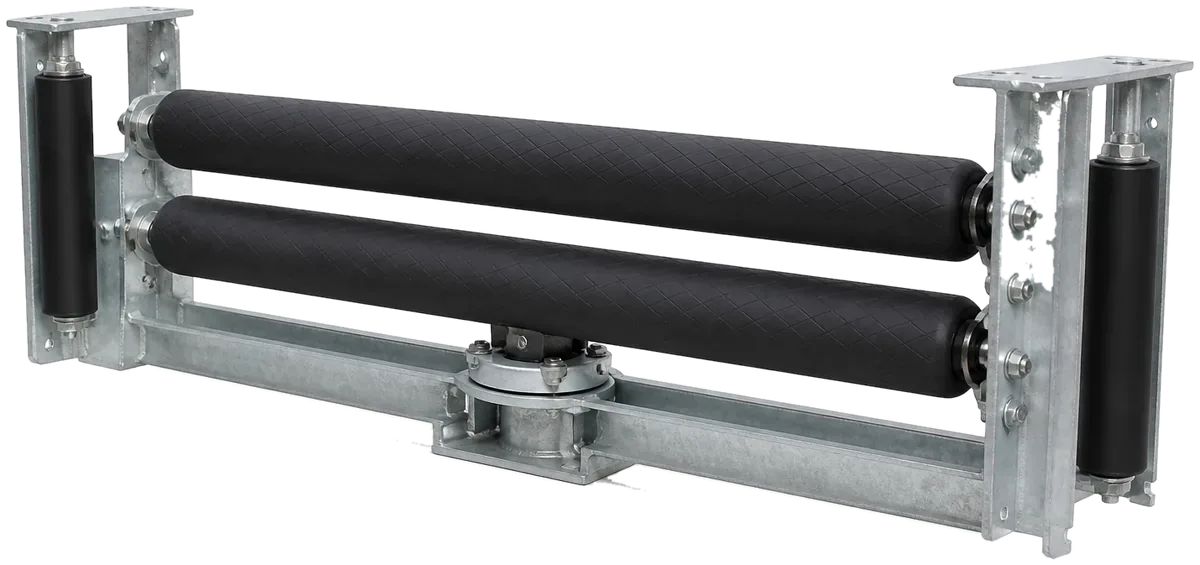

Two-roll design for wider return belts and greater tracking force.

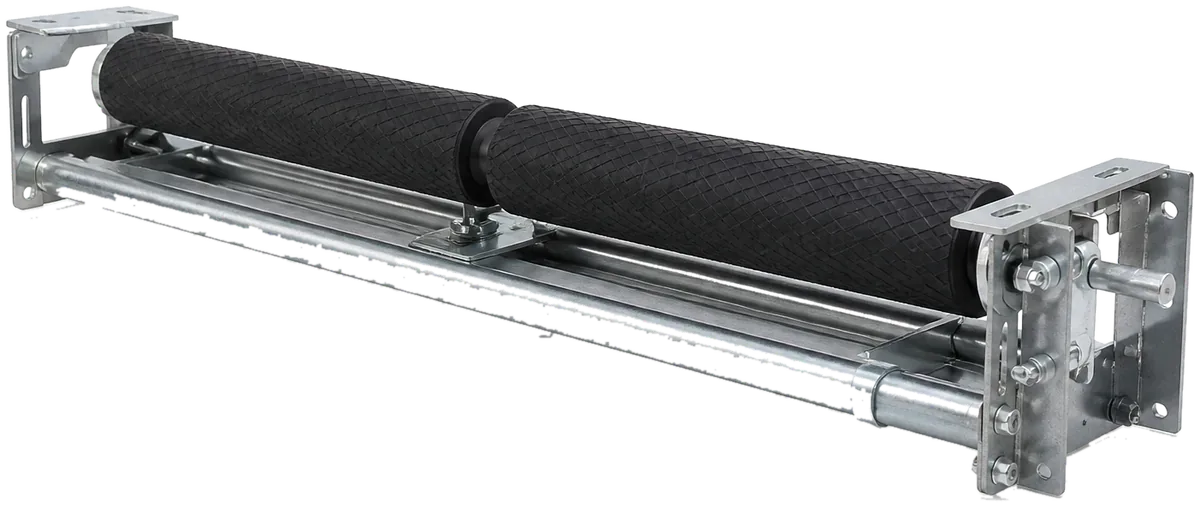

Space-saving dual-roll tracker for tight installations.

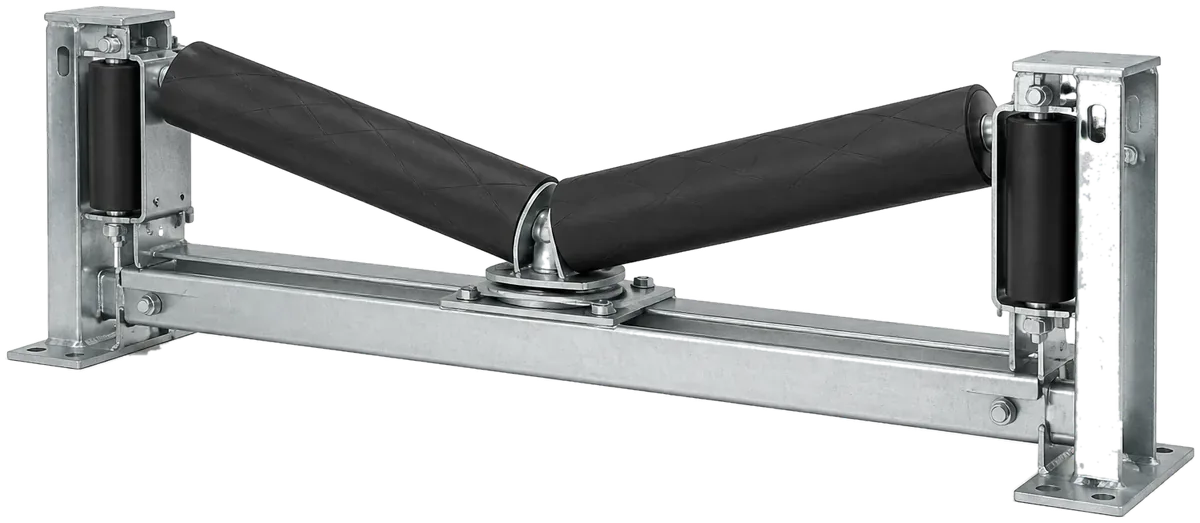

V configuration that centres the return belt positively.

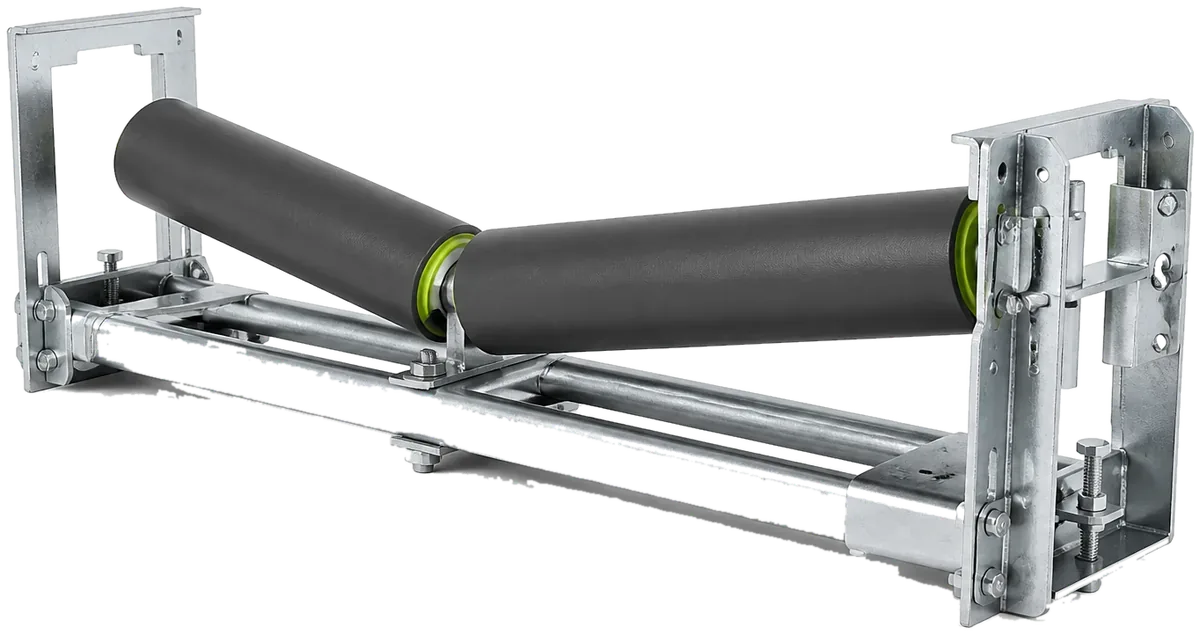

Short-frame V-return tracker for confined spaces.

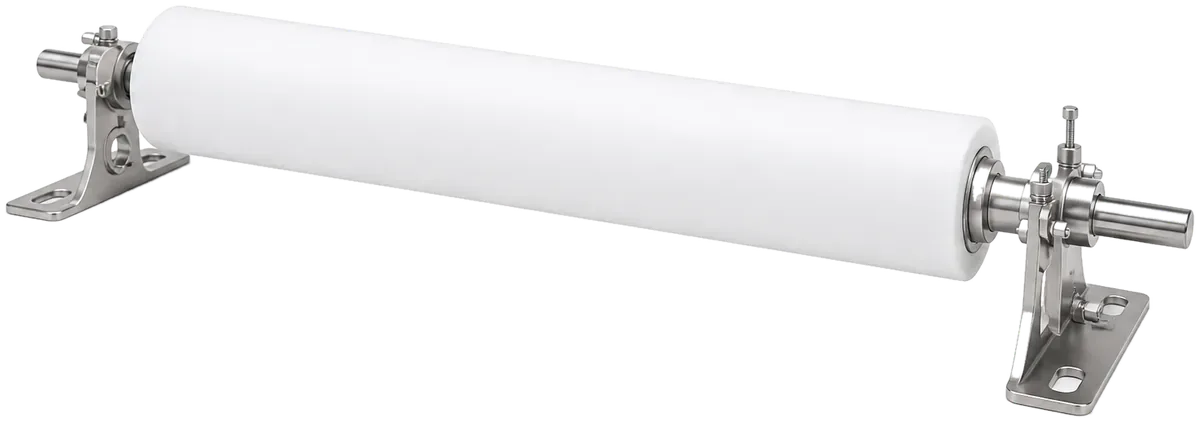

Food-grade tracker for hygienic applications.
Trough trackers3 variants

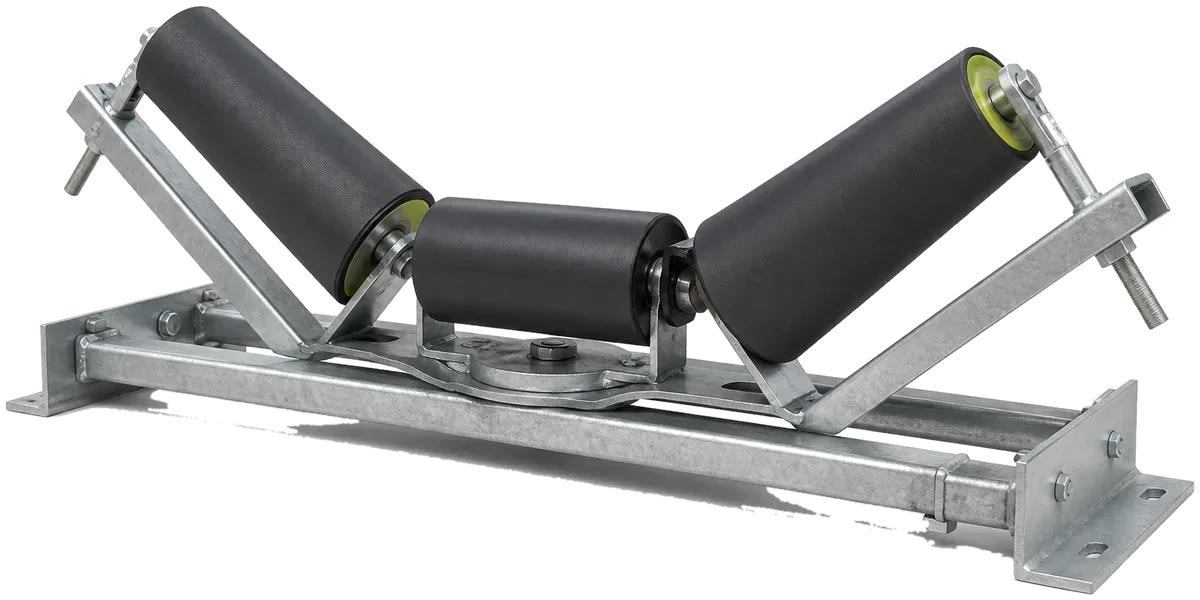

Tapered wing rollers with a unique centre pivot for highly reactive tracking.

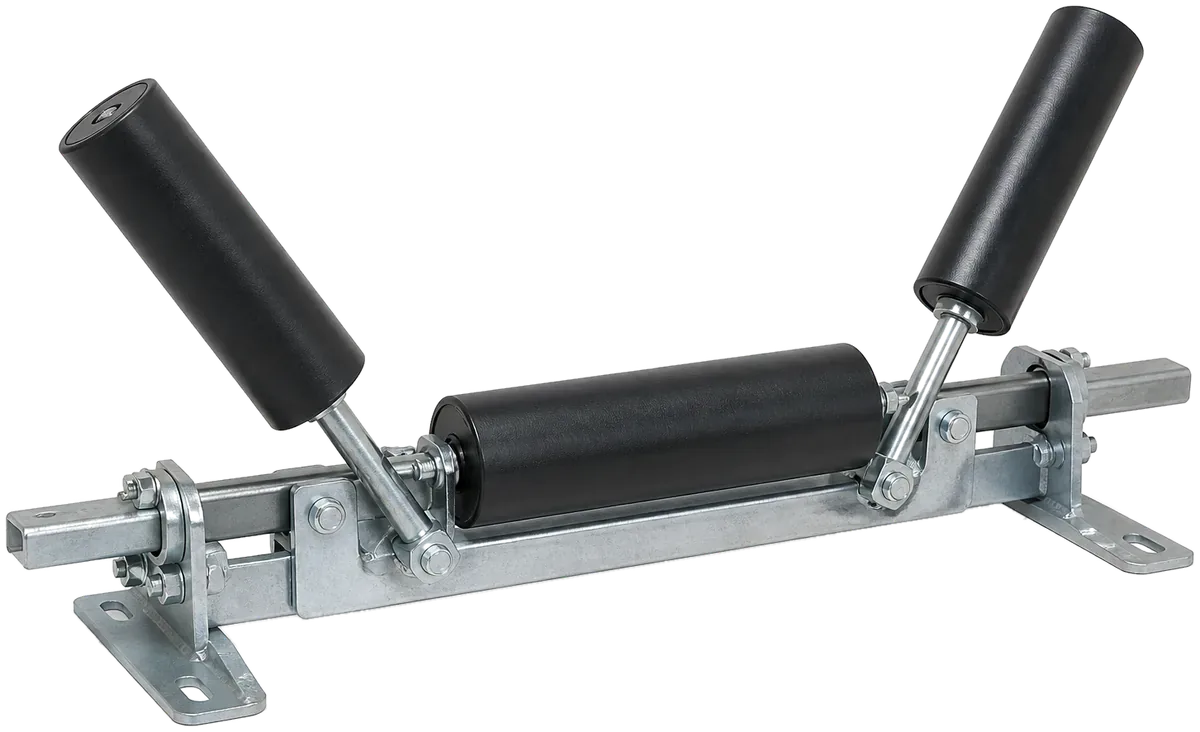

Custom designs for unusual belt widths, speeds or load conditions.

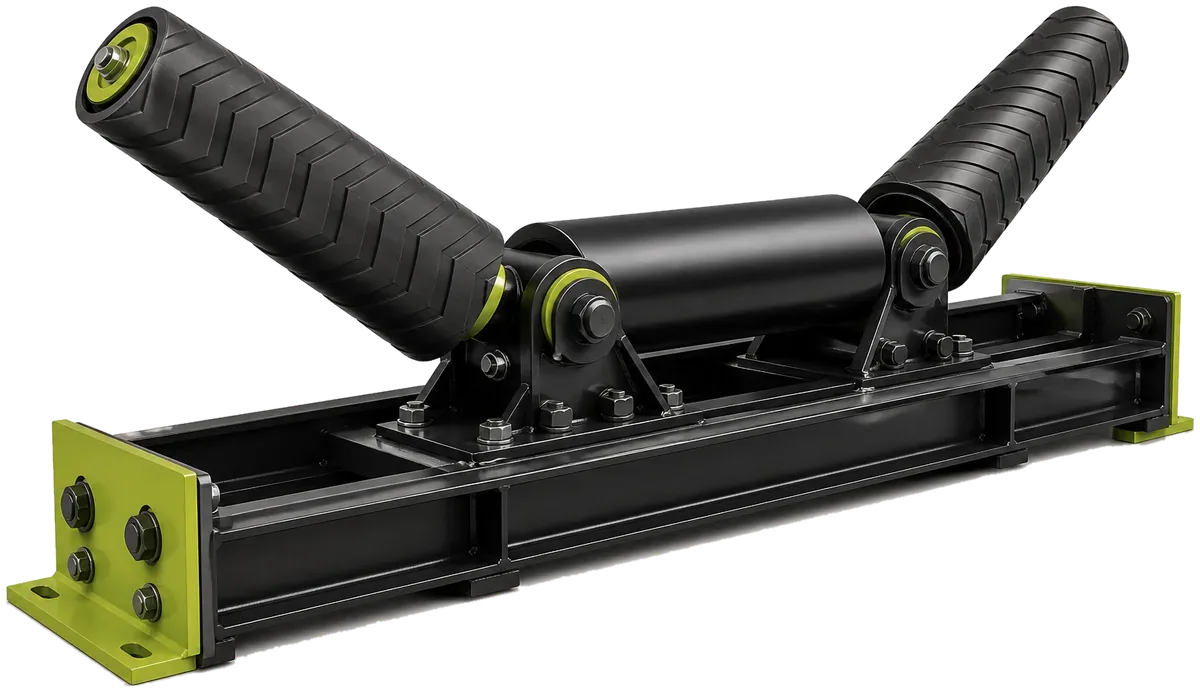

Extra-heavy-duty trough tracker for aggressive mining duty.
Why this design
- Tapered wing rollers and a unique centre pivot give highly reactive continuous tracking.
- Narrow design enhances safety and versatility of installation.
- Wing rollers adjust easily to achieve optimal tension.
- Premium rubber lagging for extended working life.
- Wing and centre rollers are replaceable as wear occurs.
- Maintenance-free bearings require no greasing.
- Available in high-abrasion rubber or fire-retardant FRAS lagging.
- Quick activation on both wet and dry belts, tracking in both directions.
Tell us the belt width and the problem
Send the conveyor, the material and what is failing. We come back with a specification and a price.
