The problem
Large rocks falling onto the conveyor belt at loading zones create impact damage that can stop operations, tear belts and damage supporting structure.
What CRS supplies
CRS impact beds are designed to protect the belt from impact damage. The modular style provides impact protection and transforms the loading zone into a low-maintenance area.
The range
Impact bed types3 variants

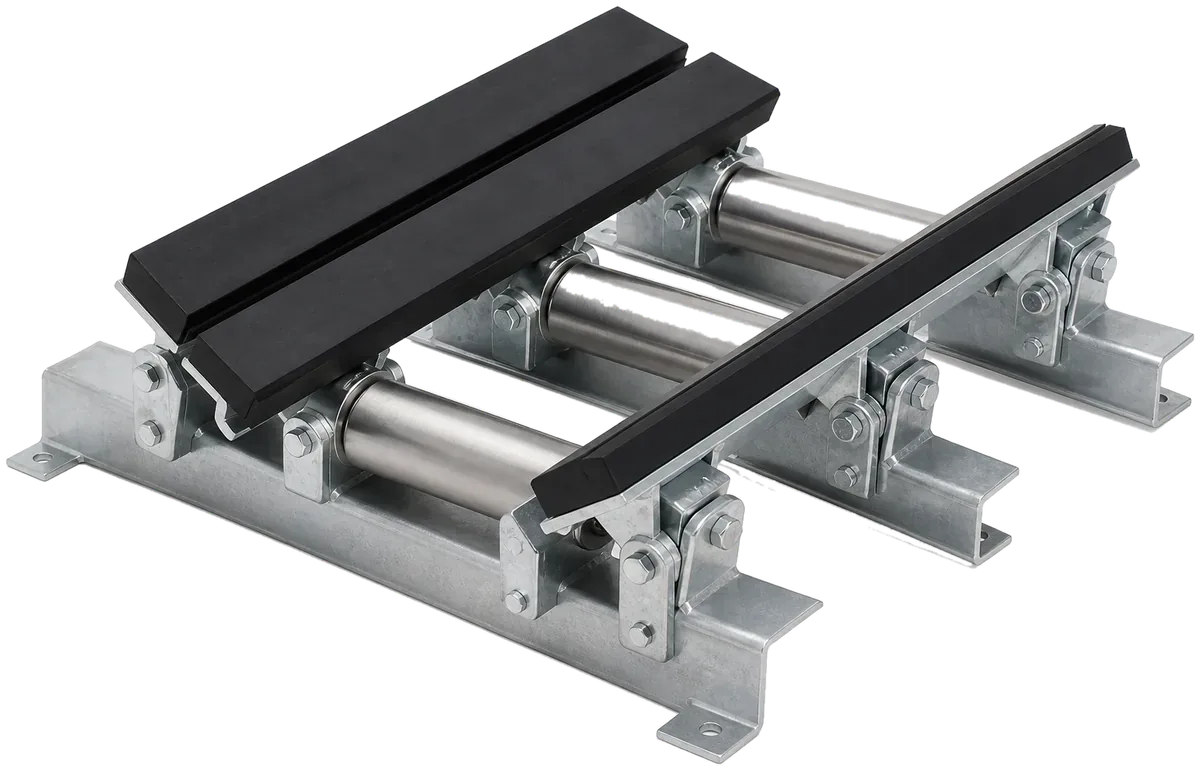

Combines impact bars with rollers to cut belt drag.

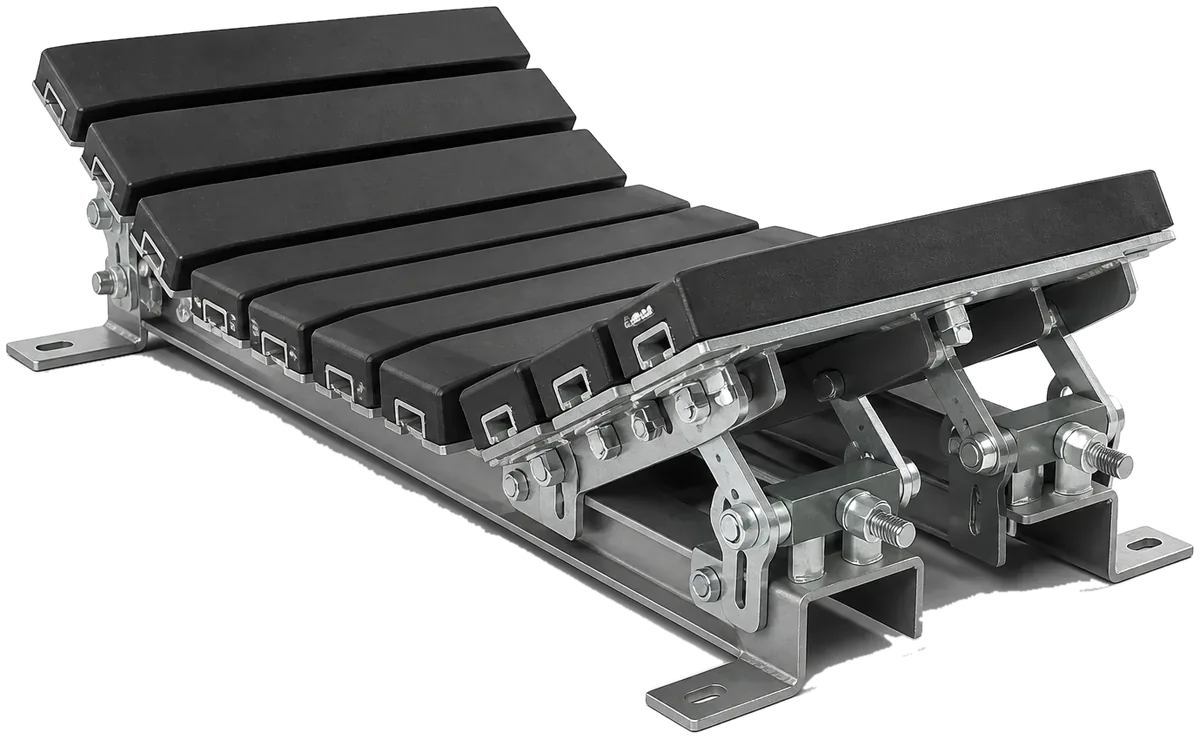

Height-adjustable bed for varying loading conditions.

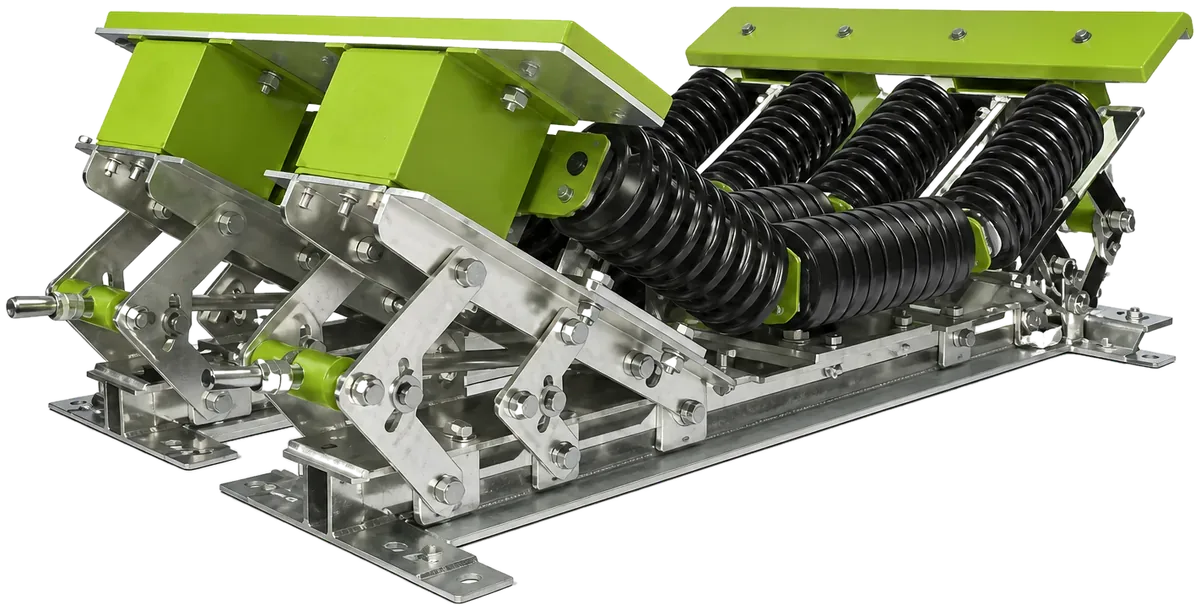

Spring-mounted heavy-duty bed for the largest rock.
How the bed is built
- Modular designHeavy-duty frame with slide-in and slide-out side and centre sections.
- FlexibleSuits different loading zone lengths.
- Maintenance friendlySlider sections allow quick replacement of worn beds.
- Absorbs impactUHMWPE top layer for smooth gliding over a rubber cushion layer.
- Improved sealingSkirting rubber is evenly supported across the length.
- Corrosion protectionThe entire frame is electro-galvanised.
Tell us the belt width and the problem
Send the conveyor, the material and what is failing. We come back with a specification and a price.
